Detailed explanation of web format bridge products

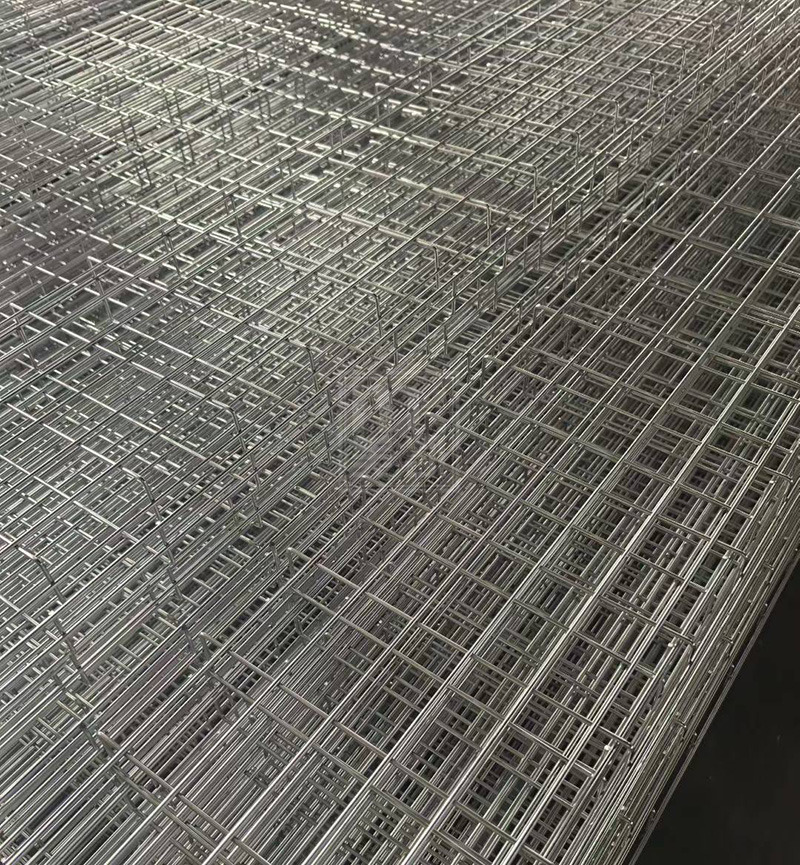

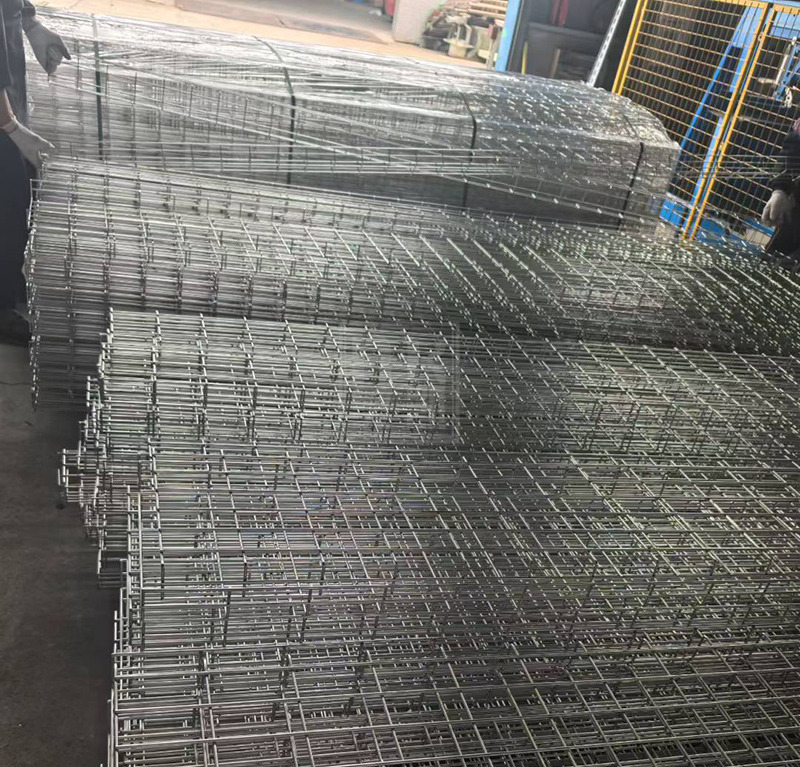

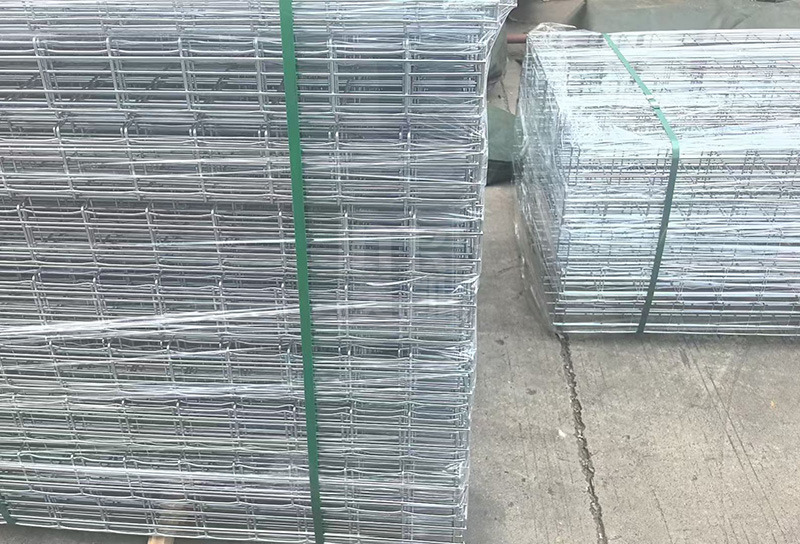

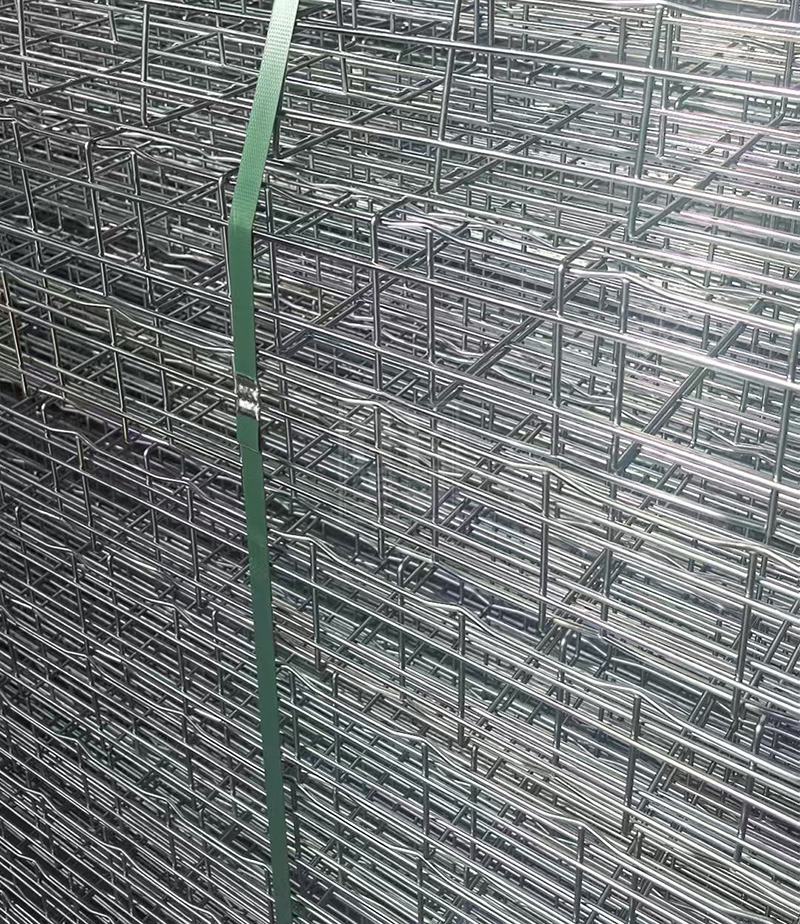

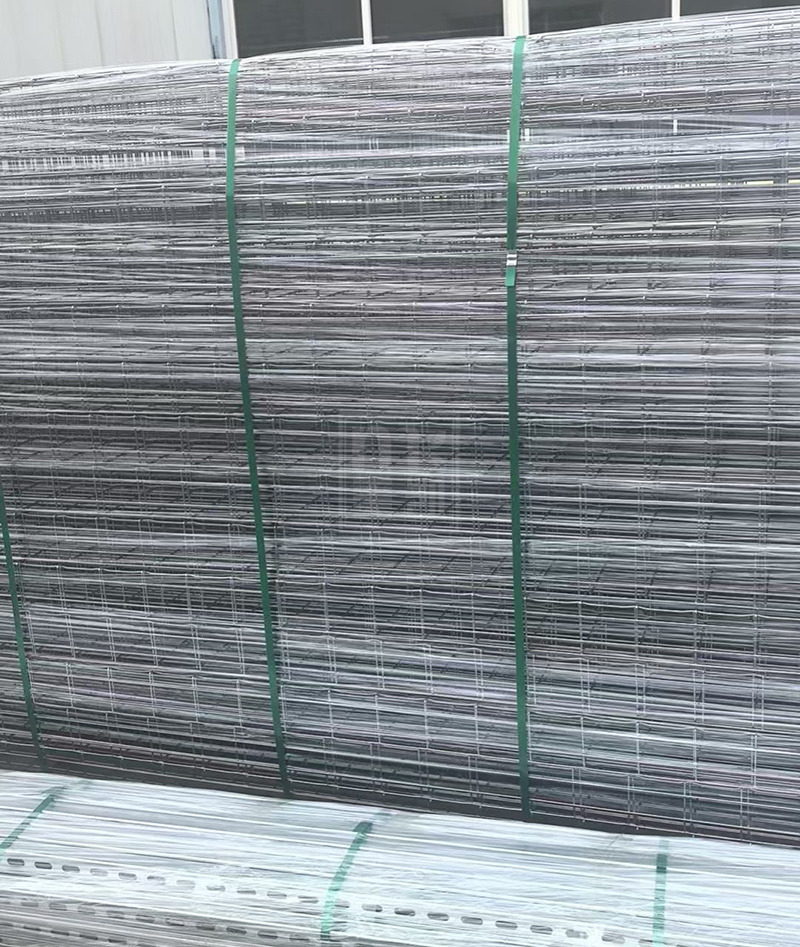

Wire Mesh Cable Tray is an open cable support system made of metal wires welded into a grid shape. It has the characteristics of ultra lightweight, ultra-high wind speed, and fast installation. It is a new generation cable management solution for data centers, intelligent buildings, and Industry 4.0 scenarios.
1、 Revolutionary structural design
1. Core components
Grid skeleton: 304 stainless steel wire/galvanized steel wire (Φ 4-6mm) | Functional advantages: Open rate ≥ 85%, heat dissipation efficiency increased by 50%
Longitudinal side beam: reinforced C-shaped channel steel (1.5-2mm thick) | Functional advantage: anti rollover design (load-bearing capacity ≥ 100kg/m)
Quick connector: Spring snap on type (tool free installation) | Functional advantage: Installation speed is three times faster than traditional cable trays
2、 Typical application scenarios
1. Data Center Revolution
-Google Modular Data Center:
-Using grid bridge to achieve "separation of hot and cold channels" (PUE reduced to 1.1)
-Cable visualization management (fault location time reduced by 80%)
2. Industry 4.0 scenarios
-Tesla Gigafactory:
-Cooperate with AGV car track synchronous laying (adaptive adjustment of wiring)
-Oil resistant coating (tested by ISO 4527 salt spray)
3. Adaptation to special environments
Cleanroom: Electrolytic polished stainless steel (Ra ≤ 0.8 μ m)
