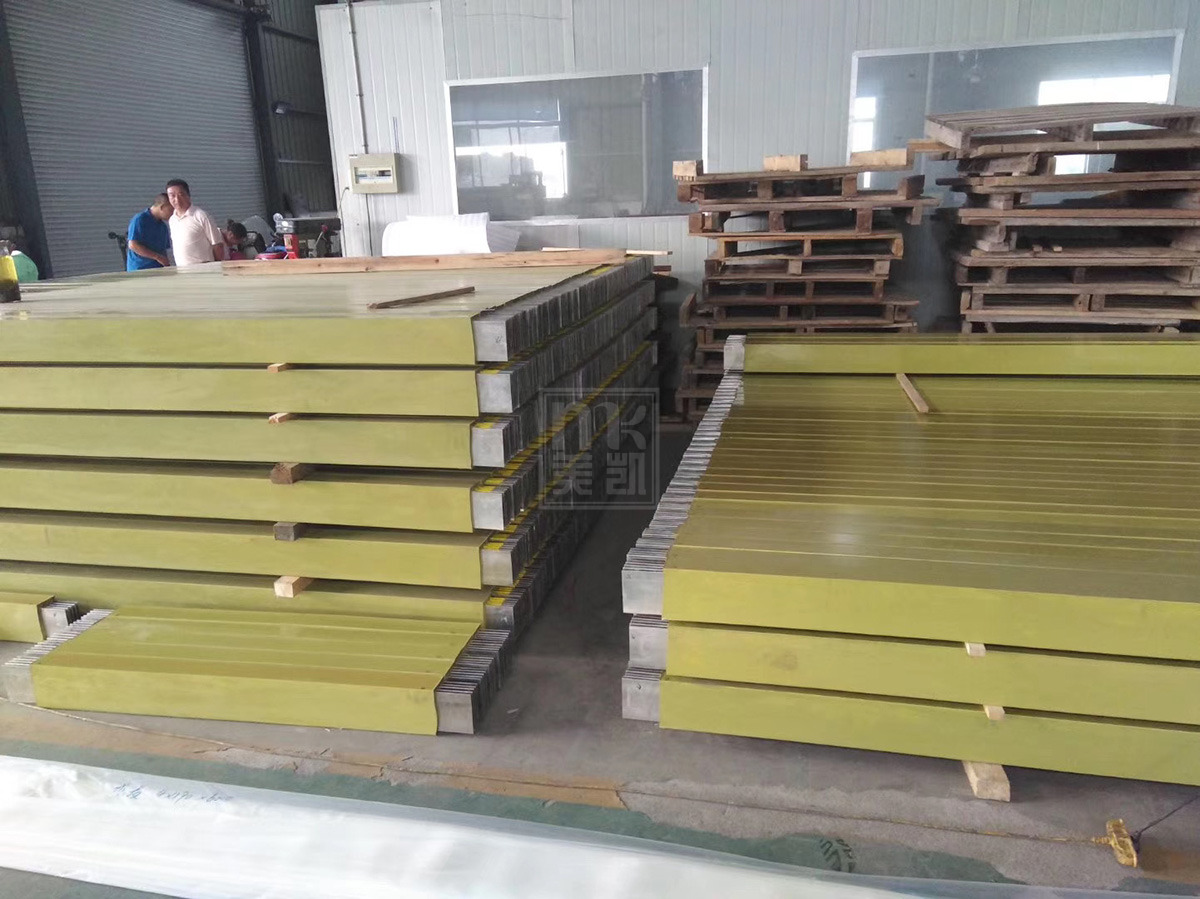

LR SUPER COMPACTRESINA BUSBAR SYSTEM
1KV low-voltage busbar system 630A-6300A
3.6KV-17.5KV high-voltage busbar system 1250A-5000A
LR super compact resina busbar fromiKV voltagesystem with rated surrent ranger from 630A-6300Ahave a degree of protection lP68, is developed as a newtransmiission and distributiion system in low voltageinstallations and widely used in shipbuilding, electricalfactory, petrochemical, steel merallurgy,mechianicalelectronic and large buildings, etc.
MAIN FEATURES
01 Fireproof has a long fire resistance limit, reliable and stable performance, and can be applied in situations that require fire safety.

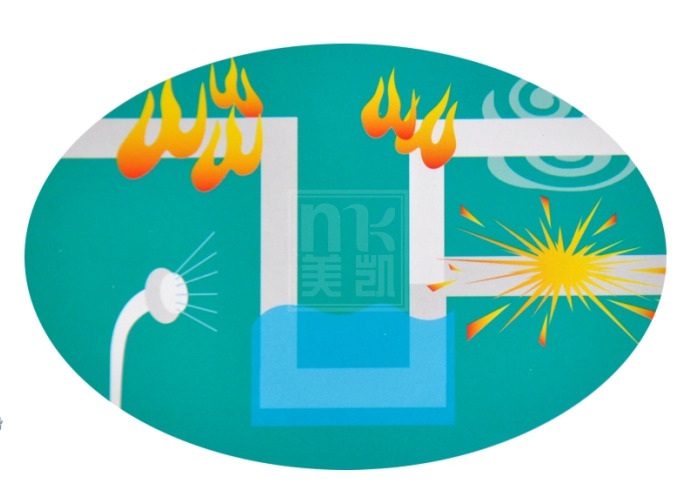

The high protection level of 02 WaterprofIP68 can be used in harsh environments such as outdoors and cable trenches.
03 Explosive resistant epoxy resin casting shell can be used in various hazardous environments.
04 Anticorrosive can effectively prevent electrical and chemical corrosion and can be used for a long time in highly corrosive environments.
Unique epoxy-resin mixture
Tailor made functional
Element
High mechanical strength
High over-load capability
Strong adaptability
Simpie installation
Maintenance free

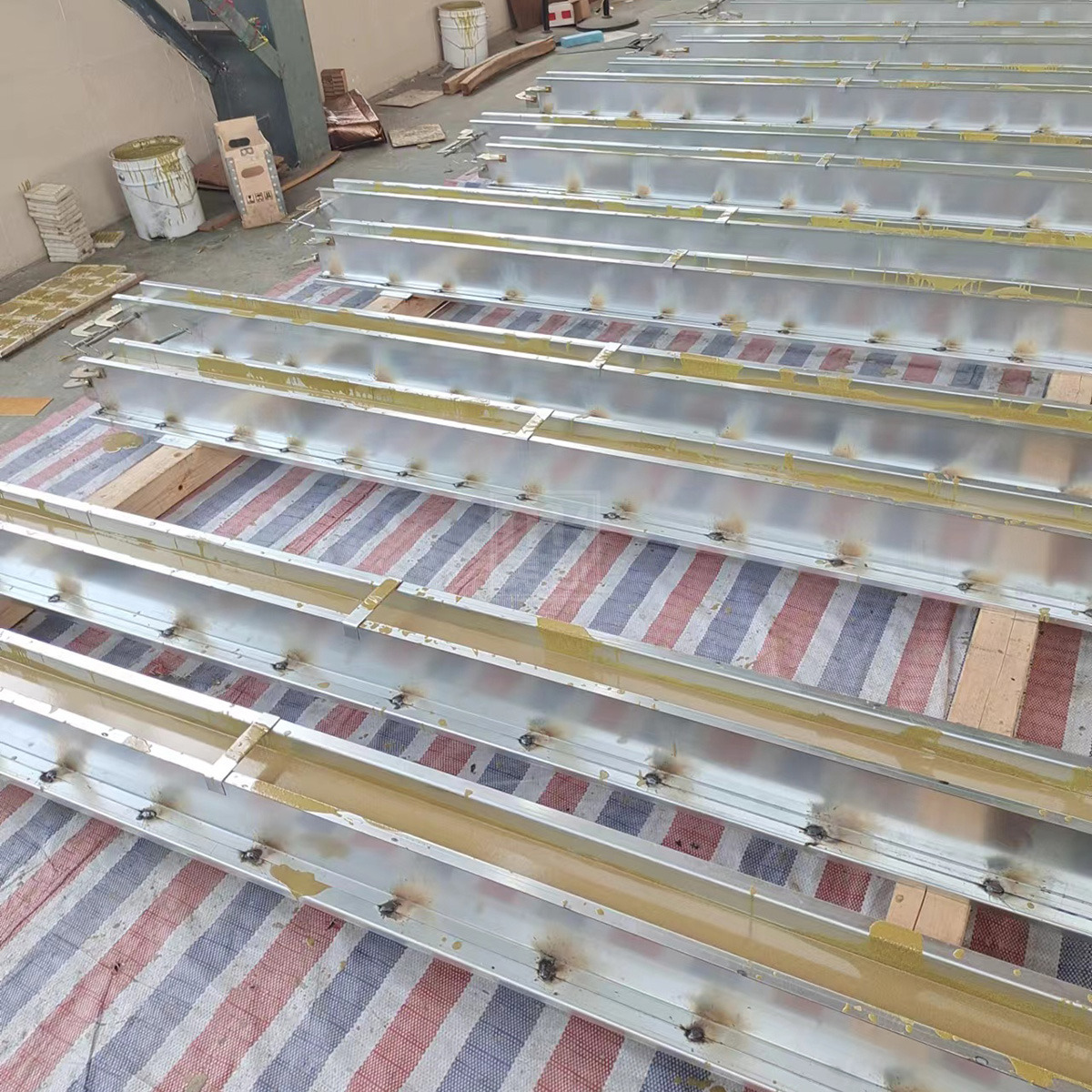

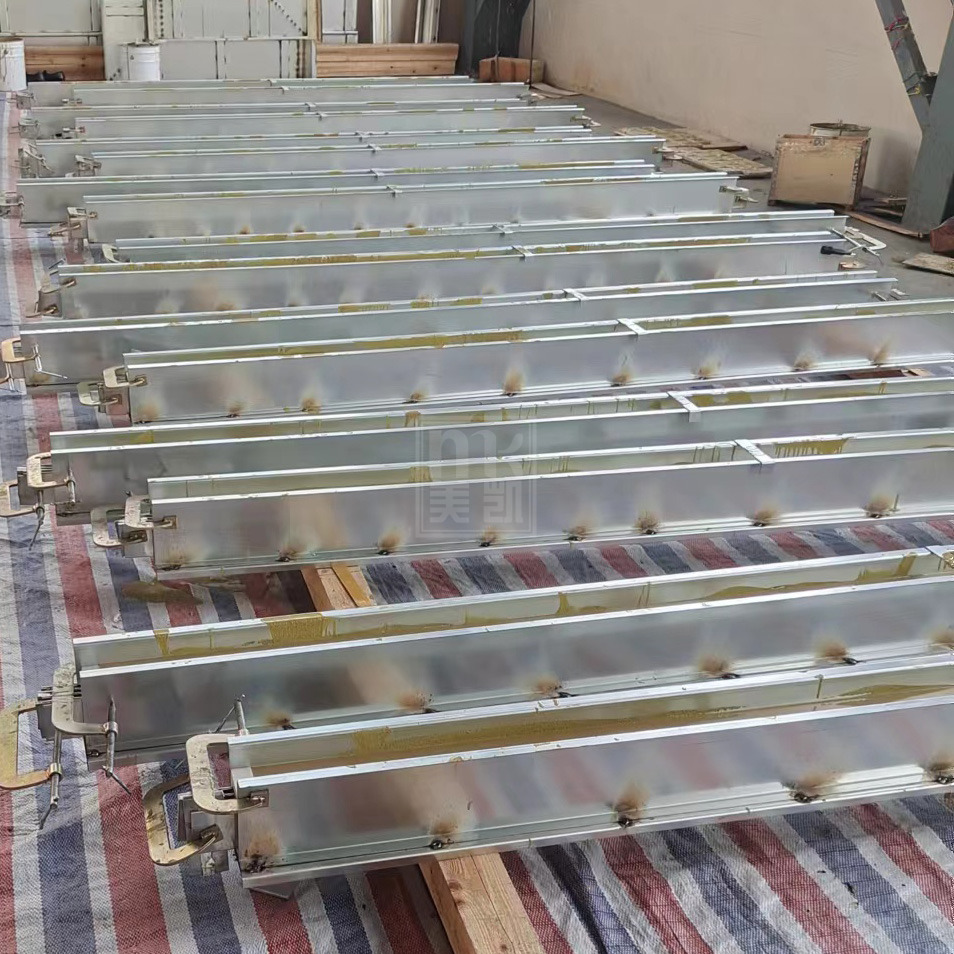

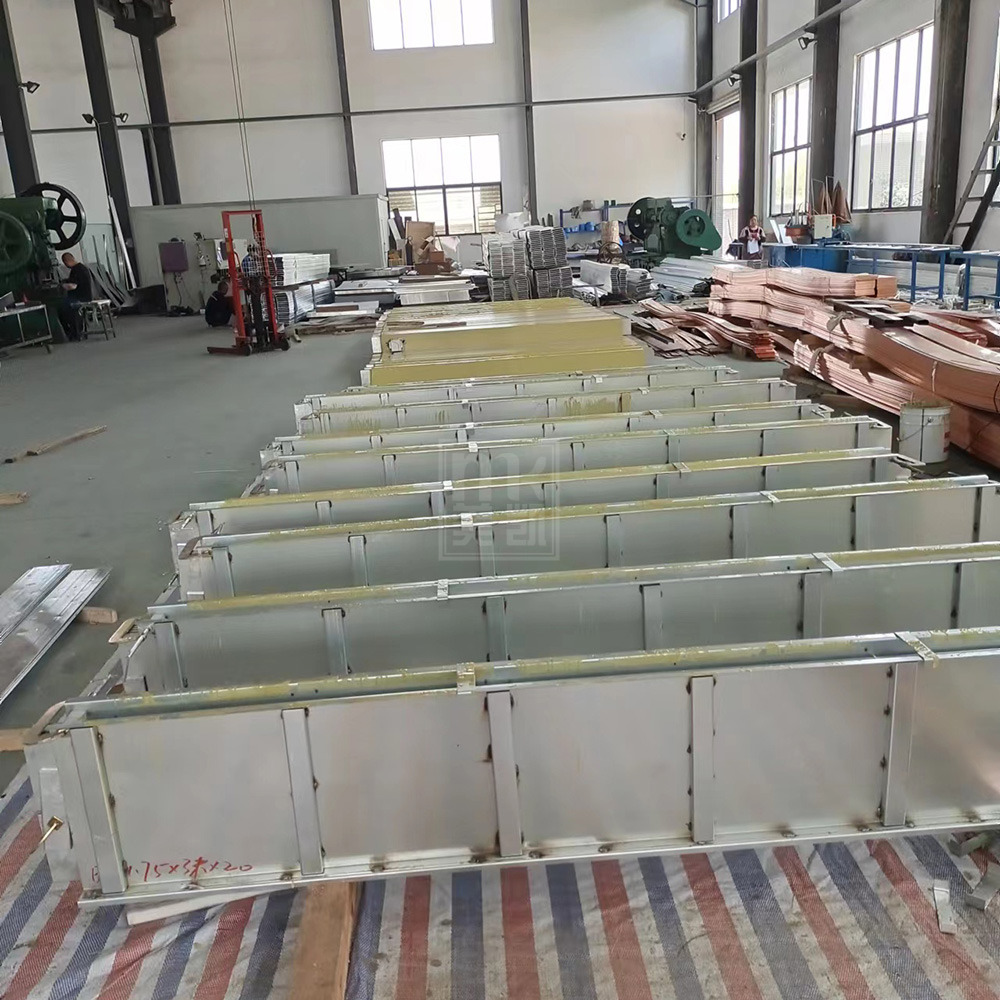

The Mk epoxy resin fully enclosed cast busbar design has a rated current of 1KV-17KV voltage system from 630A-6300A, with a protection level of up to IP68, making it a new generation of transmission and distribution system in the field of low-voltage distribution. LR fully enclosed cast busbar can be applied to various harsh and clean environments, and is widely used in various places such as shipbuilding, power plants, petrochemicals, steel metallurgy, machinery and electronics, and large buildings.

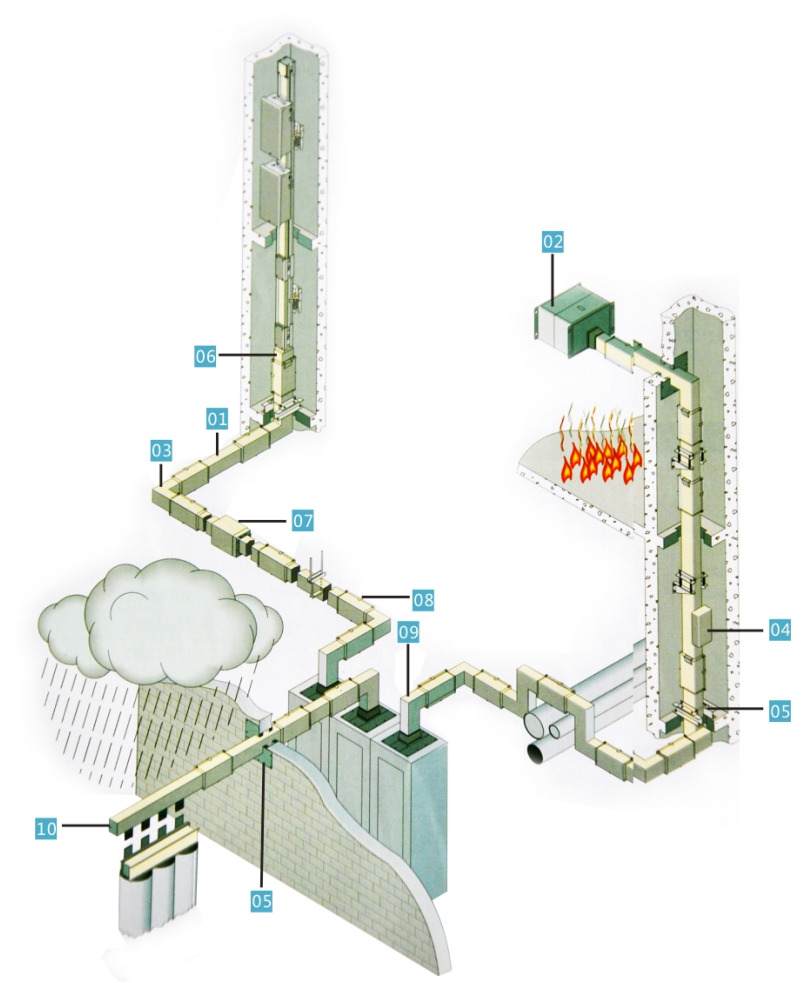

1) Straight line segment
2) Incoming unit/feeder section
3) Reversing unit
4) Plug in unit
5) Attachment
6) MK-II system coupling unit
7) Expansion joint
8) Connection unit

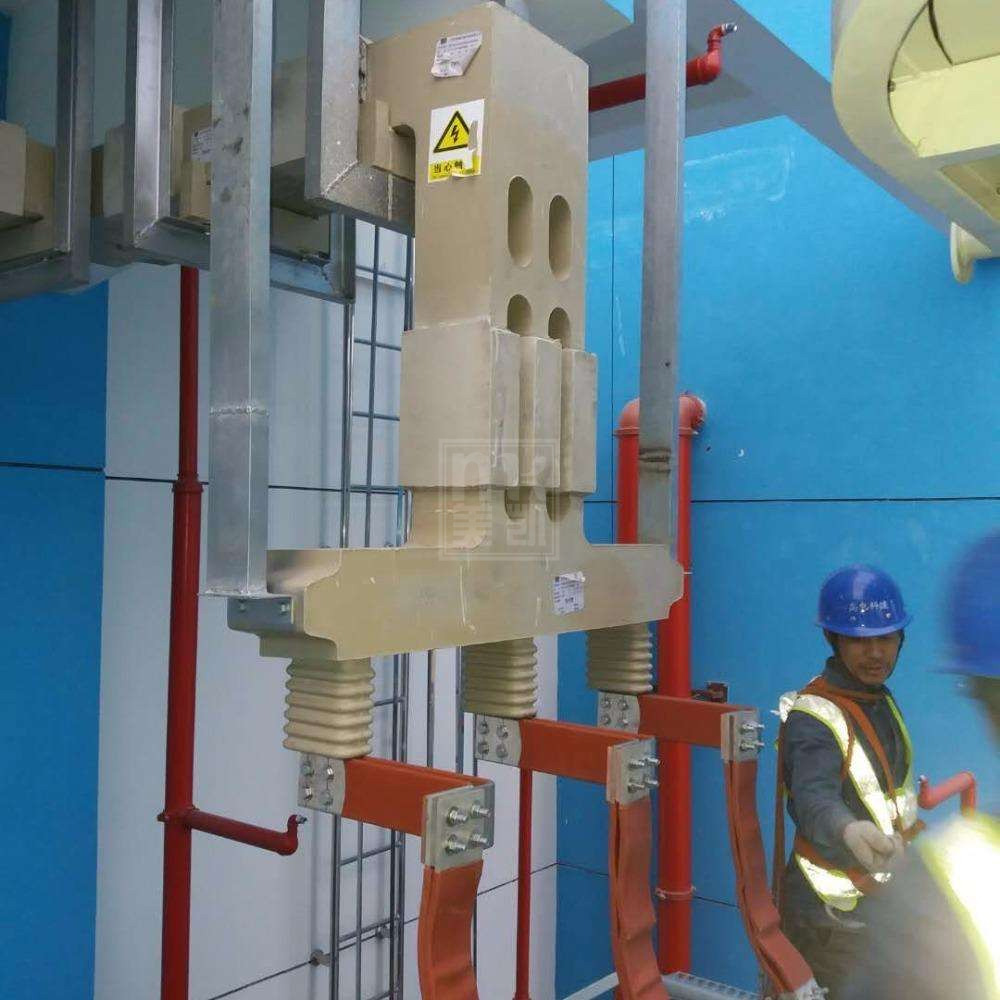

9) Low voltage cabinet connection unit 10) Transformer connection unit

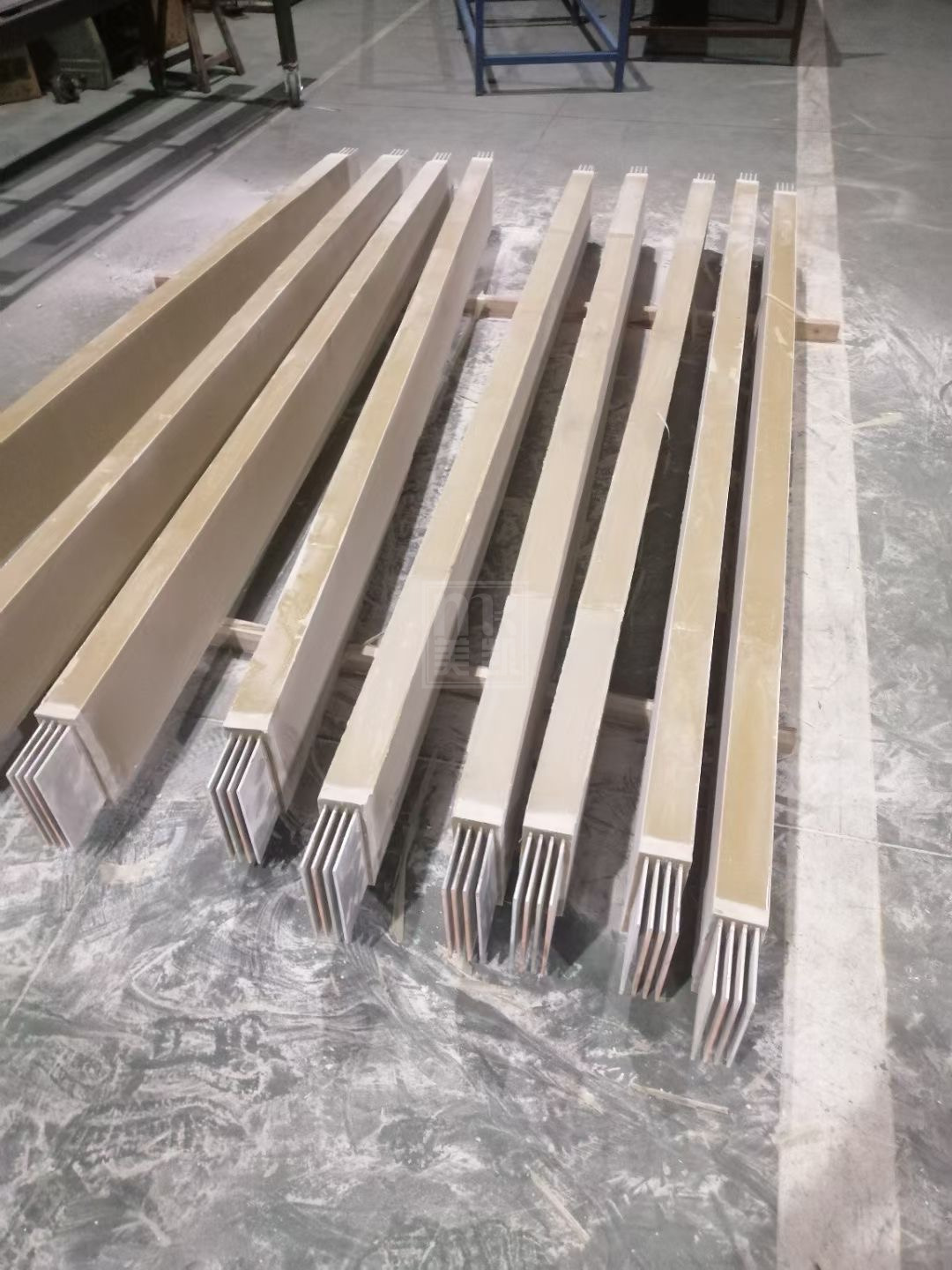

Straight line segment

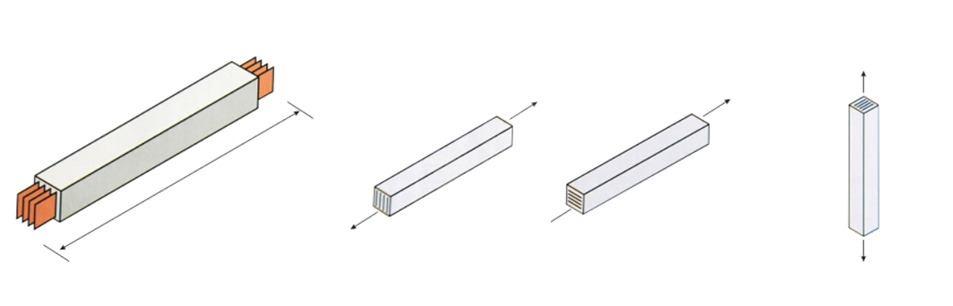

The standard length of the straight section design is 3m, with an optional range of 0.3m-3m. The unique structural design also ensures that the carrying current of the LR busbar system is not affected by the installation position and installation method. We will design a suitable busbar direction based on the actual site conditions.

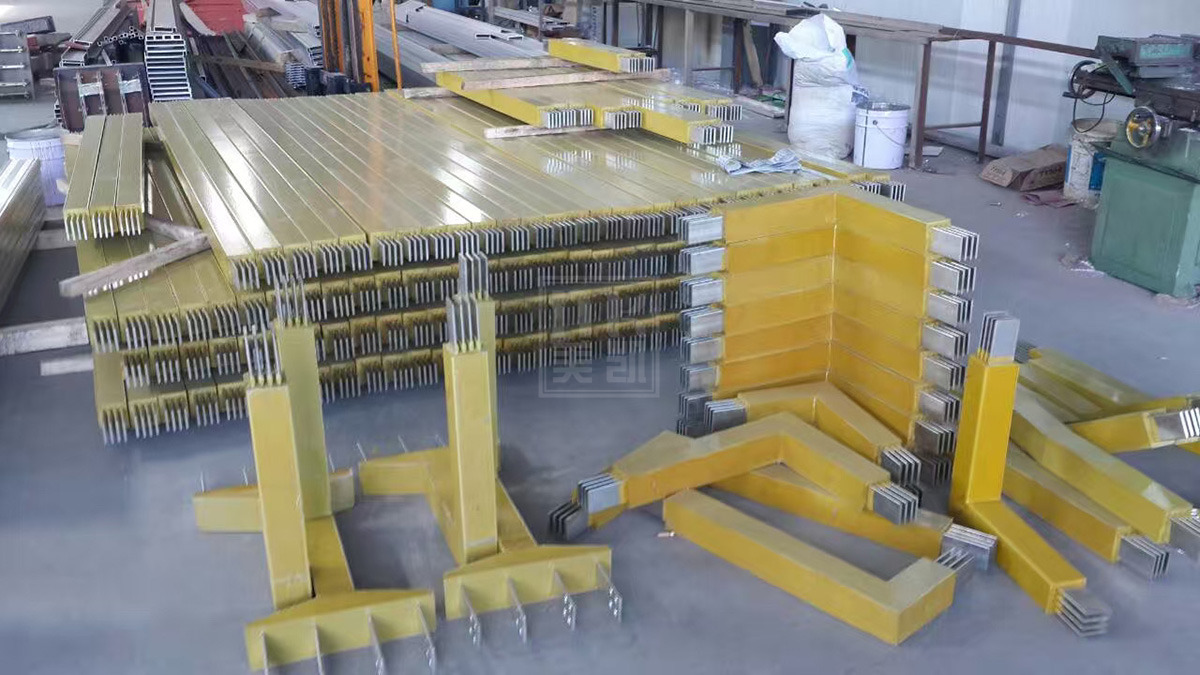

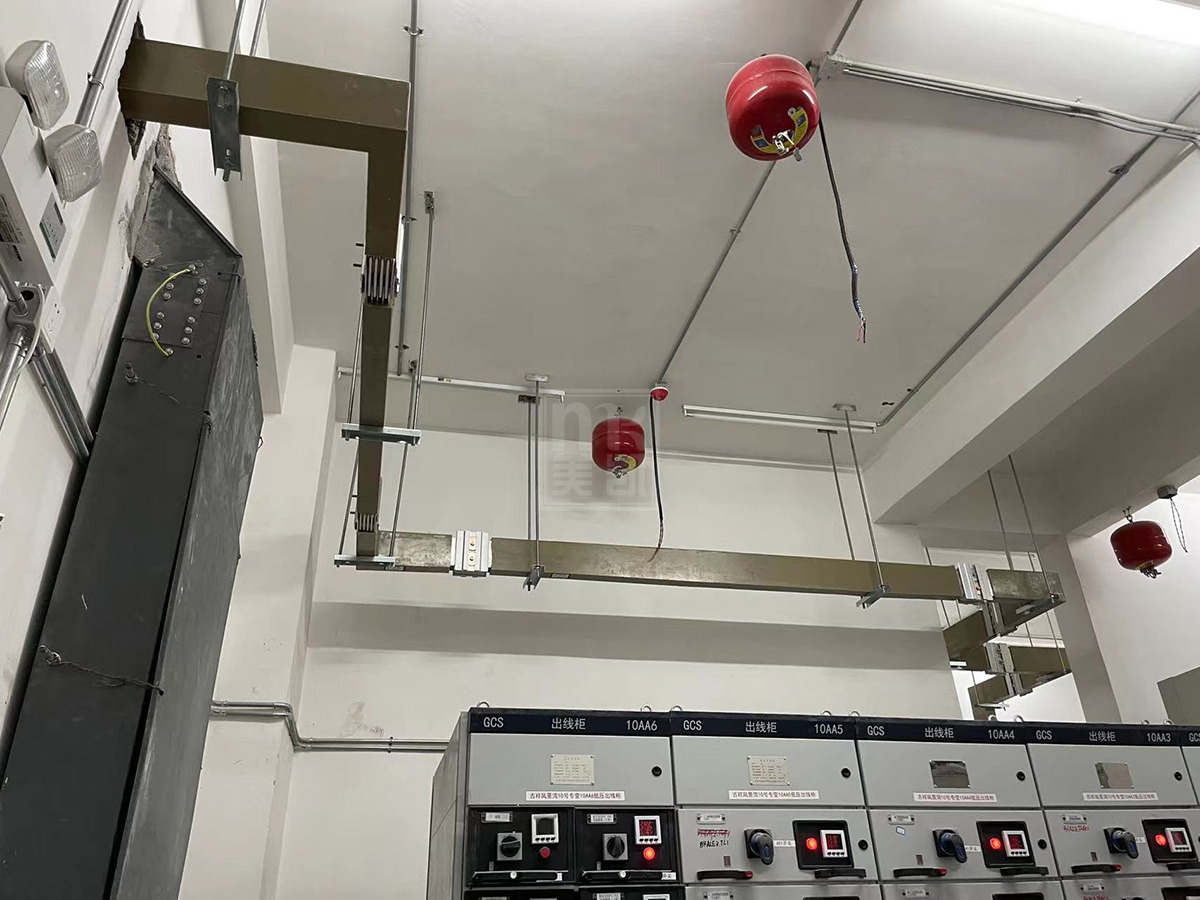

Reversing unit

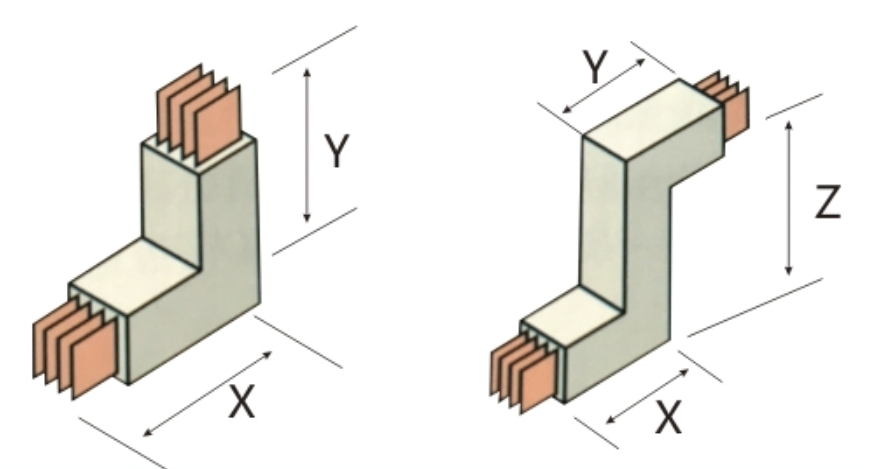

The LR system is equipped with complete horizontal, vertical, and T-shaped elbows, which can easily change the direction of the bus duct system. At the same time, in order to meet the special needs of the site, we can also carry out non-standard design,
